Durable High Strength Architectural Stainless Steel Wire Rope Mesh
ArchitecturalCable Rope MeshSpecifications:
| 304Architectural Cable RopeMesh |
| Cable Construction | Cable Diameter | Mesh Hole Size(W x H) | Breaking Strength |
| inch | mm | inch | mm | KN |
| 7x19 | 1/8 | 3.2 | 4.75´´ x 4.75´´ | 120x120 | 7.38 |
| 7x19 | 1/8 | 3.2 | 4´´ x 4´´ | 102x102 | 7.38 |
| 7x19 | 1/8 | 3.2 | 3.6´´ x 3.6´´ | 90x90 | 7.38 |
| 7x19 | 1/8 | 3.2 | 3´´ x 3´´ | 76x76 | 7.38 |
| 7x19 | 1/8 | 3.2 | 2´´ x 2´´ | 51x51 | 7.38 |
| 7x7 | 3/32 | 2.4 | 4´´ x 4´´ | 102x102 | 4.18 |
| 7x7 | 3/32 | 2.4 | 3.6´´ x 3.6´´ | 90x90 | 4.18 |
| 7x7 | 3/32 | 2.4 | 3´´ x 3´´ | 76x76 | 4.18 |
| 7x7 | 3/32 | 2.4 | 2.4´´ x 2.4´´ | 60x60 | 4.18 |
| 7x7 | 3/32 | 2.4 | 2´´ x 2´´ | 51x51 | 4.18 |
| 7x7 | 5/64 | 2.0 | 3´´ x 3´´ | 76x76 | 3.17 |
| 7x7 | 5/64 | 2.0 | 2.4´´ x 2.4´´ | 60x60 | 3.17 |
| 7x7 | 5/64 | 2.0 | 2´´ x 2´´ | 51x51 | 3.17 |
| 7x7 | 5/64 | 2.0 | 1-1/2´´ x 1-1/2´´ | 38x38 | 3.17 |
| 7x7 | 1/16 | 1.6 | 3´´ x 3´´ | 76x76 | 2.17 |
| 7x7 | 1/16 | 1.6 | 2´´ x 2´´ | 51x51 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1-1/2´´ x 1-1/2´´ | 38x38 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1.2´´ x 1.2´´ | 30x30 | 2.17 |
| 7x7 | 1/16 | 1.6 | 1´´ x 1´´ | 25.4x254 | 2.17 |
| 7x7 | 3/64 | 1.2 | 1-1/2´´ x 1-1/2´´ | 38x38 | 1.22 |
| 7x7 | 3/64 | 1.2 | 1.2´´ x 1.2´´ | 30x30 | 1.22 |
| 7x7 | 3/64 | 1.2 | 1´´ x 1´´ | 25.4x25.4 | 1.22 |
| 7x7 | 3/64 | 1.2 | 4/5´´ x 4/5´´ | 20x20 | 1.22 |
The architectural stainless steel wire mesh Webnet is a vibrant and top-quality products: the mesh size (varying from too tight or too wide) and the wire rope diameter (1.0 mm, 1.5 mm, 2.0 mm and 3.0 mm) to determine its functionality and aesthetics.
Architectural CableRope MeshDescription :
| Product Name | ss 304Architectural Cable RopeMesh |
| Wire Diameter | 2.0mm |
| Cable Construction | 7x7 ,7x19 |
| Width and Length | Customized , we can do as your requirement |
| Mesh Type | Ferrule Rope Mesh |
Stainless steel wire rope mesh is made of stainless steel wire rope.There are three types: weaven type, open ferrule type
and seamless sleeves type.stainless steel rope mesh is colored by surface treatment for decoration materials.
 |  |  |
| seamless sleeves type | ferrule type | woven type |
Excellent visibility.
Stainless steel knotted rope mesh has unique rhombic openings which makes the product have good visibility. Therefore, stainless steel knotted rope mesh is suitable for zoo mesh and bird cages. And stainless steel knotted rope mesh allows visitors to watch animals better and prevents visitors from being hurt by animals effectively. In other words, stainless steel knotted rope mesh shortens the distance between visitors and animals.
Close to nature and environmentally friendly.
Stainless steel knotted rope mesh can be used in any climate and environment. And it is resistant to rust although it is subject to violent sunlight, rain, snow and fog. So its service life can be up to more than 30 years. Besides, it can be used repeatedly. Above all, it doesn´t need maintenance after installation.
Luxury appearance.
Stainless steel knotted rope mesh has smooth appearance and diamond-shaped openings. What´s more, stainless steel knotted rope mesh itself is a beautiful landscape.
Outstanding elasticity and buffer ability.
Stainless steel knotted rope mesh has good elasticity and buffer ability. Therefore, it is resistant to impact from animals when used in zoo. Above all, neither animals nor stainless steel knotted rope mesh will be hurt. And it can provide a safe and comfortable living environment for animals and birds.
Installation Accessory of Stainless Steel Wire Rope Mesh

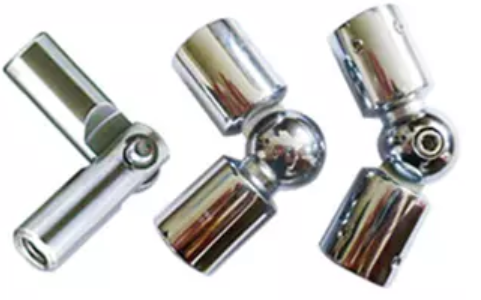

rod articulation | stainless steel cables |

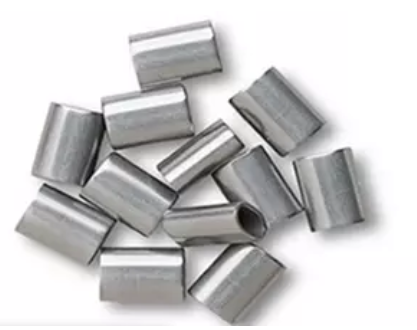

stainless steel sleeves
| cable eye ends |

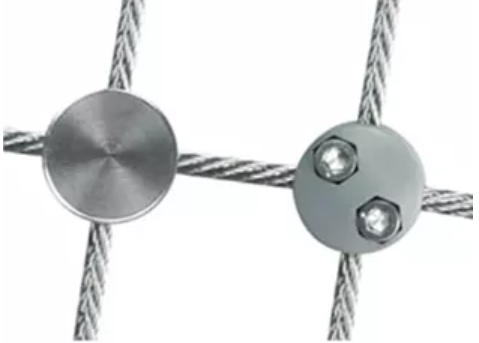

suspension rope clamps
| wall mount
|
external thread ends
| stainless steel turnbucklc |
Service
1, Free Sample:A sample of fewer than 1 feet square is provided free of charge. Requestor needs to incur the courier charges.,
2, Panel size:The panel size can be modified to the size you provide, which reduces costs and makes installation easier.
3, Packaging:The rope mesh will be rolled and packed into the P.P. woven bags or pallet.
4, Lead time:The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.
5, For individual users:We can provide installation tools and installation accessories, you can easily complete DIY.
6, Order:We charge a 30% deposit and you can accept and pay the final payment before shipment.
|
|

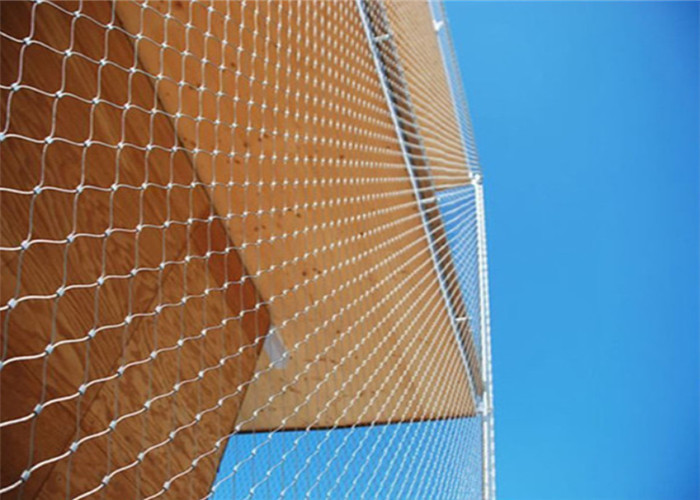

Durable High Strength Architectural Stainless Steel Wire Rope Mesh For Bridge Images
|
